DeMajo Organ Works
Shop tour and catalog
(CATALOG AND SAMPLES OF OUR WORK ARE NOW LISTED BELOW)

See the complete story on our latest OPUS by clicking the photo above.

The fabrication area
Fabrication area

Woodworking And Fabrication - Radial Arm Saw and Scrollwork

A rank of string diapason pipes, with chest, shown under construction.

Releathering area
Our Re leathering area

Assembly and work area

We have designed many specialized tools and patterns to expedite the custom fabrication of our products, enabling us to give our clients fast turn-around times on most chest and wood products orders. Pictured below is our rack board support construction machine to produce accurate and uniform rack board end supports in a matter of seconds.

A small Positiv organ case under construction in our woodworking assembly room.


DeMajo Organ Works was recently contacted by a church in a neighboring state after their expensive German organ blower motor burned out, and they were told by their present maintenance contractor that they would be required to purchase a new $3,000 blower. The original motor was no longer available. The technicians at DeMajo Organ Works were able to locate a suitable pump motor, however, the shaft length needed to be extended. Our machinist was able to extend the shaft and balance the blower and motor locally, which saved both time and money. A bonus is that the new motor is more energy efficient than the original motor, and it has slightly more reserve power capacity. The blower was returned to service within three days of its arrival at our shop, and it now operates cooler and is extremely quiet thanks to our ability to perform in shop computer balancing of the motor and fan rotor. The best part is that the cost to the customer was less than 1 / 3 of the original repair estimate for a replacement blower.

Because our repair philosophy is deeply rooted in good mechanical engineering and construction practice, as well as musical excellence, we are often able to develop cost saving methods of repair that other shops may not have the equipment or expertise to accomplish.




OUR CATALOG
The following is a catalog of current products available for the organ hobbyist.
All products are custom assembled, on receipt of order, to ensure that they suit the client's exact needs. Our components are specifically intended for the organ hobbyist who wishes to assemble a residence organ or a small project organ for church or theatre use. All products are hand-crafted and all work is guaranteed.

CUSTOM BUILT ORGAN COMPONENTS
Above: Model 3310.49(61)D dual 49/61 note pipe chest. Built locally in our Virginia shop, this chest is available as a single rank unit chest, or as a multi-rank chest up to seven ranks per assembly. Dependable all electric action means no re leathering or servicing of the chest internals for decades to come.

Shown below is one of our 3311.61S high pressure, single-rank unit chests, a specially designed chest for theatre organ or high-pressure symphonic organ service. In the two following photos, the chest is seen leaving our shop in Richmond, and in its final installed position serving a high-pressure trumpet rank at St. Mary's Nativity Catholic Church in Raceland, LA.


TRUMPET CHEST BUILT FOR ST. MARY'S NATIVITY CHURCH IN RACELAND, LA

OFFSET CHEST FOR WURLITZER TIBIA BUILT FOR A CLIENT IN PENNSYLVANIA

ANOTHER TIBIA OFFSET CHEST CONSTRUCTED IN OUR RICHMOND SHOP

REPLACEMENT ORGAN PIPES
We now offer limited wood pipe production. While we have not yet begun building complete ranks, we are able to build single pipes, as replacement for existing ranks, on an as-needed basis. Here is a sample of a pipe that was made in our shop.

TREMOLOS, REGULATORS AND WINDING SYSTEM COMPONENTS
DeMajo T-4600 theatre organ tremolo unit. This dependable unit uses only three moving parts.

DeMajo Model R-1100 gusset type wind regulator. This simple and inexpensive regulator provides excellent wind regulation on both classical and theatre organs. Simple silicon lubricated "Guillotine" valve provides long life and reliable operation.

We also offer a "gusset t-less" regulator

PITTMAN VALVES
FOR LARGE OFFSET CHESTS
By popular request, we now offer a large Pitman pouch style valve for use on pedal and bass note offset chests where the standard Peterson magnets may be insufficient. These valves are available in toe hole sizes from 1" through 2.5." Here is a sample of the single note valve that is designed for mounting directly to the underside of the toe board..


Replacement Reed Organ Stop Linkages for Antique Pump Organs

TOY COUNTER COMPONENTS
We can provide complete all-electric toy counters, including our "black-light" illuminated model for special effects when used in the listening space.
This is our newly released drum beater machine. There are two models, one for snare drums and a larger version for bass drums. All electric action eliminates the need for blower and winding systems on electronic or virtual instruments. Built-in high-speed relay allows use directly with computerized and solid-state organ relays.

We offer a line of simple electro-dynamic toy counter percussion instruments, electrically operated harps and tuned percussion devices, sirens, train whistles, bells and other theatre organ toy counter components. All of our devices use standard 12 volt DC solenoids manufactured by Detroit Coil Company, a leader in the manufacture of solenoids and magnetic coil devices. Shown above is our TC-111 cow bell. We also offer complete toy counter units that are ready for connection to any pipe or electronic organ console. Below is an illustration of a twelve-device toy counter suitable for portable use.


OFFSET CHESTS

We offer a complete line of treble and bass offset chests with up to eighteen notes per unit. Shown here is our 18 note treble string offset. Below is our 8' string rank 12 note offset. All chests employ dependable electric action for low maintenance and high dependability.
Above, twelve note 8' string offset built for the DeMajo Residence pipe organ in Richmond, Va. . Below, special six note 8' trumpet offset chest shown at completion in our shop, and also in its final installed position at St.Mary's Nativity Church in Raceland, LA.
TRUMPET OFFSET CHEST BUILT FOR ST. MARY'S NATIVITY CHURCH IN RACELAND, LA.


This walnut finished exposed chest, designed to hold an 8' flute offset, was custom built for a client in Dallas.

WE NOW OFFER
Non-Organ Related Wood Products
such as
CHURCH FIXTURES and CUSTOM FURNITURE

Our wood-working operation provides a source for non-organ related items as well as our quality organ components. The authentically styled 1900's Tabernacle (shown below) was built in our shop for use in a home chapel.

Our Mid-20th Century style Prie Dieu kneeler in solid Oak.

Here, a solid oak rail-road car door is being fabricated for the Virginia Railway Historical Society. This authentic recreation of an original door, will find its way to an antique Chessie System mail car being restored at the society's train yard in central Virginia. DeMajo Organ Works is proud to provide a source for wood products in the restoration of vintage railroad equipment.

Windows, shown above, are replacements for the locomotive pictured below.

This garden pergola is another example of our non-pipe organ related wood products.

These custom built-in shelving units for a client in Glen Allen, VA. are another example of non-organ related, fine woodworking products available from DeMajo Organ Works' woodworking division


This authentically styled Italian curio stand was reproduced from an actual blueprint drawn in the early 1900s by a member of the DeMajo family. The original piece that was created from that blueprint, was destroyed in the Hurricane Katrina flood in New Orleans.

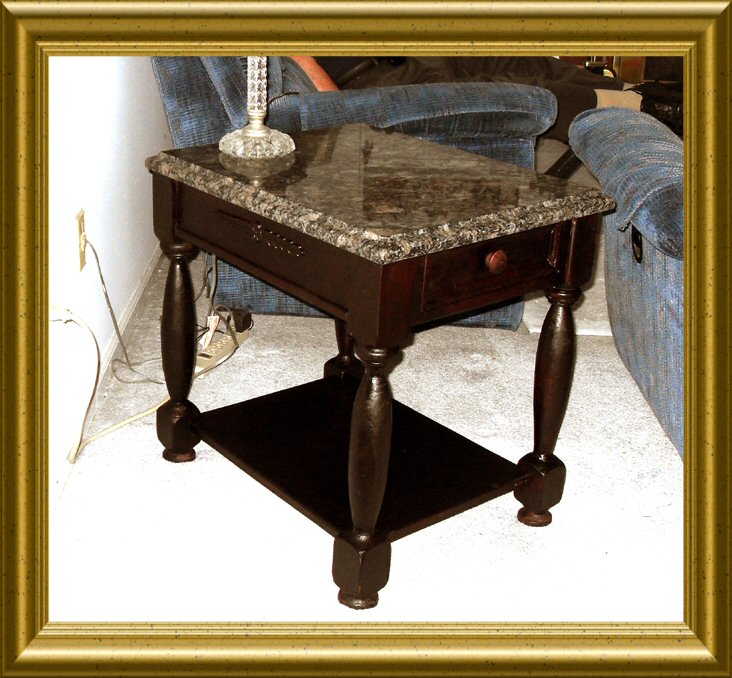

One of a set of matching custom granite end tables designed and built for a customer in Richmond.

NEW PRODUCTS AND SERVICES
The panel above is a new product line to allow easy monitoring of static pressures on each division of the organ. Accurate and reliable Dwyer Magnehelic Gauges are employed to permit easy visual monitoring of system leakage, regulator settings and blower performance visible from anywhere in the chamber.

VIRTUAL ORGAN SYSTEMS
Our services include the construction of virtual organ systems, and the virtualization of existing consoles. We can construct a new console that meets your specifications, or we can retrofit almost any existing electronic or pipe console, using quality Artisan Instruments, Inc.® components, to create a virtual instrument to meet the needs of any church, theatre, entertainment venue, or residence organ project. Contact us for information and pricing on your custom project.

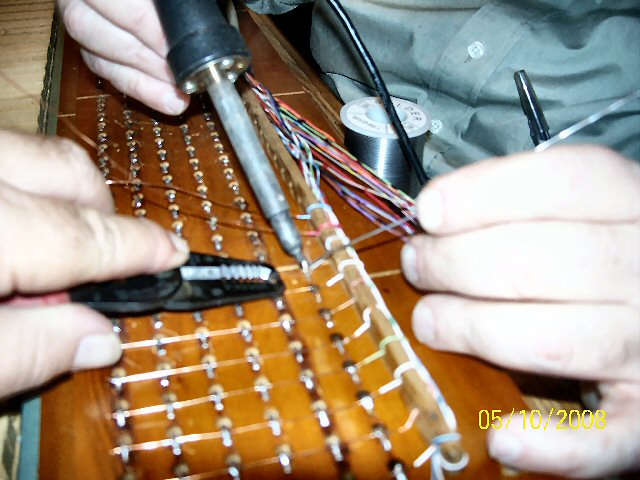

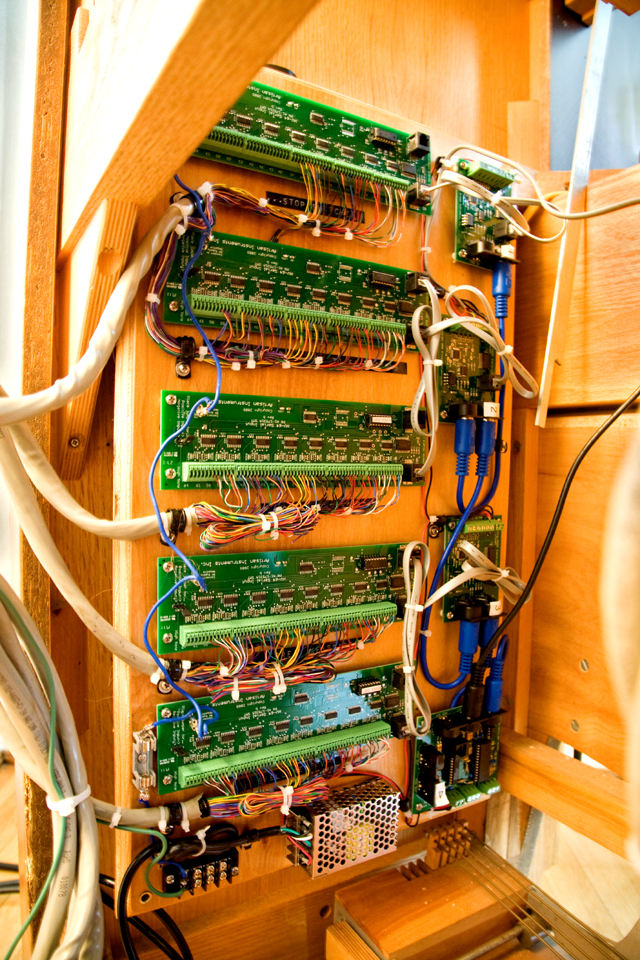

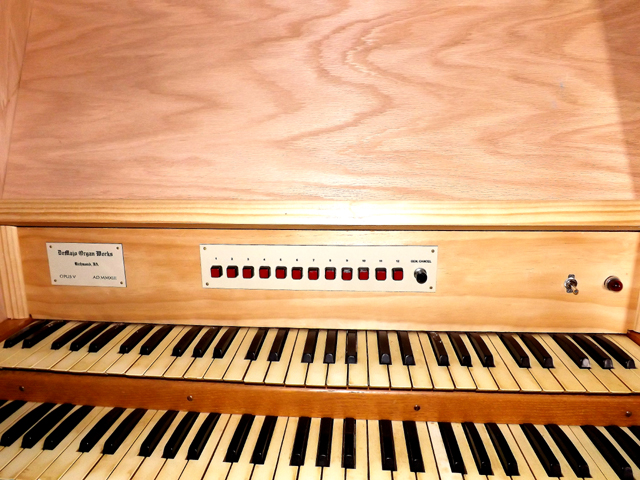

Above: custom built control system allowing conversion of Casavant console for use as a virtial organ. Below: retrofit of a 1930s Möller organ keyboard during the conversion of the original Möller console for use with a custom built DeMajo Virtual Organ System.

For information or quotations contact us today. Email jdemajo at demajo.net and be sure to replace the "at" with an @. Whether it's a component, or an entire instrument, we are happy to serve you.
